NC tube bender RB series

These machine comes standard with operation sequence program and switching circuit of bend arm speed, often used for bending automobile piping, pipe furniture, extruded aluminum and square tube. RMB-75 model has a bend axis driven by servomotor which offers high speed/high precision bending in maximum output during quiet operation.

RB-75 counterclockwise turn specification (option)

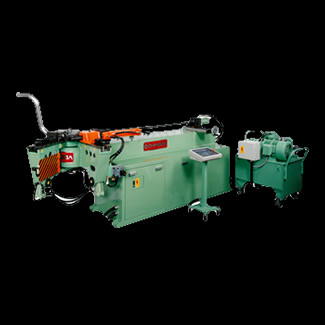

RB-75 with booster unit (option)

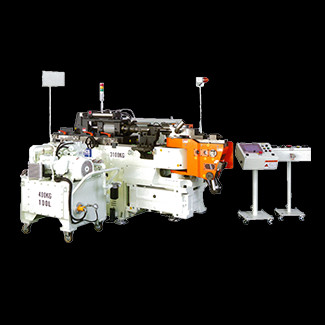

RBM-75　（bend motor driven)

Specifications

Processing material	Thin-wall steel tube ｍｍ	φ76.3xｔ2.3
Bending capacity	Bending radius mm	270
Bending capacity	Mandrel effective length mm	1,850
Size	Length mm	STD:2,850 RBM:2,600
	Width mm	STD:1,090 RBM:1,100
	Height mm	STD:1,100 RBM:1,180
Motor for hydraulic pumps kW		7.5
Weight kg		STD:1,800 RBM:1,900

// How to Read Model Numbers

RB　　-○○○-

M	M- Bend axis servomotor control (No-sign for hydraulic drive)
