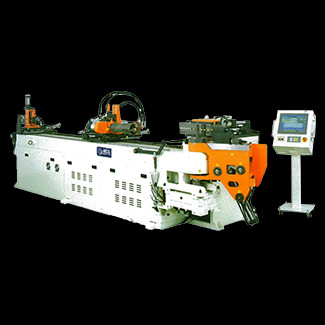

EX-500
CNC tube bender EX series
EX-500 / EX-500-1DR / EX-500L /
EX-500-ECO
EX-500 is intended for use in medium size OD tube bending for such as motorcycle frame, construction hardware (handrail), automobile sheet pipe, shipbuilding fittings and piping. It is a popular model as the intermediate between EX-400 and EX-600, which realizes compact machine body and budget price.
Specifications
| Processing material |
|
φ60xt2.5 |
|---|---|---|
|
φ50.8xt2.5 | |
| Working speed |
|
STD：200/0.9 1DR・ECO：150/1.2 |
|
280/0.7 | |
|
1,200 | |
|
4～6.5 | |
|
900～550 | |
| Size |
|
STD：4,550 1DR：4,600 ECO：4,100 |
|
STD：1,550 1DR：1,550 ECO：1,500 |
|
|
STD：1,600 1DR：1,750 ECO：1,600 |
|
|
STD：3,200 1DR：5,000 ECO：3,800 |
|
// How to Read Model Numbers
EX-○○○-
| No-sign | Standard general-purpose type |
|---|---|
| L | Equipped with a tube loader or a robot (laborsaving type) |
| F | four-axis-control CNC type (bending radius shift axis added) |
| 1DR | For tight radius bending for automobile, airplane, vehicle and construction machinery (with a tube booster and multi-stack) |
| ECO | All-electric-motor drive type (environment-friendly) |
