| Spinning Machine Specification
|
unit:mm |
|
|
SPM-40
|
SPM-140
|
|
Pipe outer diameter for processing
|
ø40×t1.6
|
ø140×t1.6
|
|
Pipe effective length
|
50~350mm
|
200~325mm
|
|
Process Surface
|
Spinning roll forming
|
-
|
|
process time
|
Ca. 8 sec~15 sec
(depending on forming type)
|
60 sec
|
|
Control axis
|
CNC 2 Axis simultaneous
|
CNC 2 Axis simultaneous
|
|
Main axis motor
|
5.5kw
|
18.5kw
|
|
Hydraulic motor
|
0.75kw
|
1.5kw
|
|
Main unit dimension (L × W × H)
|
2,500×1,500×1,600mm
|
3,800×1,800×2,000mm
|
|
Weight
|
1,800 kg
|
6,500 kg
|
|
Pipe charge / Discharge (option)
|
Automatic loader
|
|
|
Pipe effective length
|
80~200mm
|
|
|
Pipe stock
|
20 units
|
|
|
Cycle time
|
7~14 sec
|
|
| Pipeworking Machine
Specification |
unit:mm |
|
|
AWP-E
|

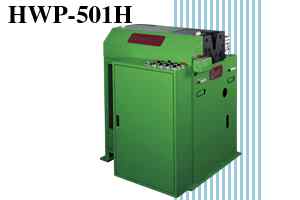

HWP-501
|
HWP-502 |
HWP-503 |

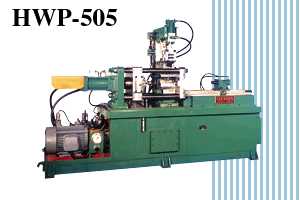

HWP-505 |
HWP-510 |
HWP-515 |
|
Pipe diameter
|
ø16×t1.0
|
ø19.1×t1.5
|
ø30×t1.6 |
ø40×t1.6 |
ø50×t2 |
ø60×t2 |
ø80×t3 |
|
Forming cylinder
|
ø180
Pneumatic
|
ø100×60st
|
ø112×100st |
ø140×150st |
ø200×150st |
ø200×200st |
ø265×
300st |
|
Forming Power
|
2ton
|
4.3ton
|
5.5ton |
10ton |
20ton |
35ton |
50ton |
|
Clamp method
|
Horizontal
|
H Type (Horizontal) / V Type (Vertical)
|
Horizontal |
Horizontal |
Vertical |
Vertical |
Vertical |
|
Processing speed : 1 punch / 2 punches
|
3sec
|
3sec/4.5sec
|
3.5sec/6sec |
3.5sec/5sec |
8sec/15sec |
10sec/18sec |
14sec/25sec |
|
Hydraulic tank
|
Pneumatic 5kg/cm2
|
30 liter
|
70 liter |
100 liter |
200 liter |
250 liter |
300 liter |
|
Motor
|
-
|
3.7kw
|
3.7kw |
5.5kw |
11kw |
157kw |
22kw |
|
Control method
|
SequentialÅ@Control
|
|
Main unit dimension (L x W x H)
|
1,000×
700×
1,200mm
|
1,100×
900×
1,100mm
|
1,600×
1,000×
1,300mm |
1,700×
1,000×
1,400mm |
1,900×
1,100×
1,900mm |
3,200×
1,500×
2,500mm |
4,100×
1,500×
3,000mm |
|
Weight
|
500kg
|
800kg
|
1,000kg |
1,200kg |
1,800kg |
3,000kg |
3,500kg |
