| SP Series (Medium type
~ Large type) |
mm |
|
SP
|

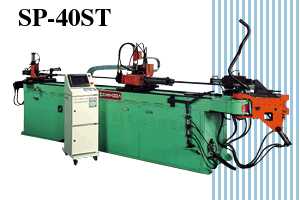

40S/ST
|
60S/ST
|
80S/ST
|
90S/ST
|
120S/ST
|

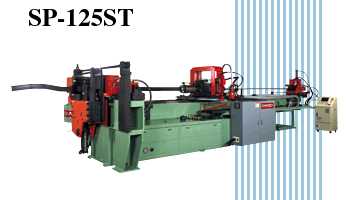

125S/ST
|
|
Bend Capacity pipe diameter x wall thickness
|
Standard steel pipe
|
ø42.7×3.5
|
ø63.5×3.8
|
ø76.2×3.2
|
ø114.3×4.5
|
ø127.0×5.0
|
ø165.2×5.0
|
|
Steel pipe (thick wall)
|
ø34×4.5
|
ø60.5×4.5
|
ø60.5×5.5
|
ø89.1×7.6
|
ø114.3×8.6
|
ø139.8×9.5
|
|
Square pipe
|
40×20×2.3
|
50×30×2.3
|
60×30×2.3
|
80×40×2.3
|
100×50×3.2
|
125×75×4.5
|
|
Round steel
|
ø20
|
ø32
|
ø38
|
ø50
|
ø55
|
ø65
|
|
Bend Radius for 2-stacked bending standard spec. (Optional for
3-stacked or more bending)
|
Max. Radius
|
200
|
200
|
350
|
350
|
500
|
700
|
|
Difference Radius. 2 stacked (ST)
|
50
|
80
|
100
|
100
|
150
|
150
|
|
Pipe effective length
|
Mandrel bending
|
2,400
|
2,400
|
3,000
|
4,000
|
5,500
|
5,500
|
|
Controllable range for CNC control axis
|
Bend Axis
|
0~190°
|
0~190°
|
0~190°
|
0~190°
|
0~190°
|
0~190°
|
|
Feed Axis
|
0~2,400
|
0~2,400
|
0~2,800
|
0~3,800
|
0~5,100
|
0~5,100
|
|
Plane Axis
|
±360°
|
±360°
|
±360°
|
±360°
|
±360°
|
±360°
|
|
Available CNC processes
|
30
|
30
|
30
|
30
|
30
|
30
|
|
Controllable speed for CNC (5-step variable for each axis)
|
Bend
|
15~180°/sec
|
8~77°/sec
|
8~62°/sec
|
6~30°/sec
|
3~22.5°/sec
|
2~14°/sec
|
|
Plane
|
200~1000/sec
|
200~700/sec
|
100~400/sec
|
100~400/sec
|
100~400/sec
|
50~400/sec
|
|
Tilting
|
25~250°/sec
|
25~260°/sec
|
25~135°/sec
|
18~90°/sec
|
5~20°/sec
|
5~20°/sec
|
|
Accuracy of Repeatability
|
Bend Axis
|
±0.05°
|
±0.05°
|
±0.05°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Feed Axis
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
|
Plane Axis
|
±0.05°
|
±0.05°
|
±0.05°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Processing capacity
|
4~10°sec /Bend
|
4~10°sec /Bend
|
7~16°sec /Bend
|
10~18°sec /Bend
|
11~40°sec /Bend
|
11~40°sec /Bend
|
|
Electric capacity
|
Hydraulic pump monitor
|
7.5kw
|
11kw
|
22kw
|
22kw
|
30kw
|
37kw
|
|
Total electric capacity
|
27kw
|
40kw
|
30kw
|
33kw
|
45kw
|
56kw
|
|
Machine dimension
|
Length
|
4,370
|
4,370
|
5,100
|
6,430
|
8,750
|
8,950
|
|
Width
|
1,100
|
1,560
|
1,410
|
2,035
|
2,180
|
2,600
|
|
Height
|
1,600
|
1,600
|
1,700
|
1,960
|
2,165
|
2,540
|
|
Feed stroke
|
2,400
|
2,400
|
2,800
|
3,800
|
5,100
|
5,100
|
|
Bending interference radius
|
110
|
165
|
165
|
195
|
300
|
450
|
|
Process center height
|
1,120
|
1,141
|
1,141
|
1,325
|
1,440
|
1,800
|
|
Total weight
|
2,700kg
|
3500kg
|
5,000kg
|
6,500kg
|
11,000kg
|
18,000kg
|
