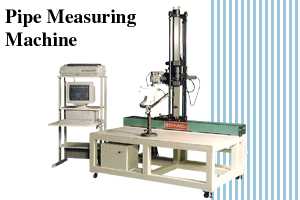

3D Pipe Measuring Machine
|
| 3D Pipe Measuring Machines
Specification |
mm |
| Item |
M-2 |
| Measuring method |
Layout machine based on rectangular coordinate measurement |
| Available pipe diameter |
ø4~ø100 |
| Available step number |
Max. 30 steps |
| Measuring Range |
X-axis 1200mm |
| Y-axis 500mm |
| Z-axis 500mm |
| Probe type |
Laser probe LP-100 |
| Position Reading Sensor |
X-, Y-, Z-axis |
Linear scale |
| Detection of probe phase |
Rotary encoder |
| Data processing unit |
PC main unit |
|
| Display |
|
| Printer |
|
| Display unit / Measuring Accuracy |
X-, Y-, Z-axis 0.1mm |
|
| DBB (feed) 0.1mm |
DBB (feed) ±0.2mm |
| POB(Plane) 0.1° |
POB(Plane) ±0.2° |
| DOB (Bend) 0.1° |
DOB (Bend) ±0.1° |
| Data setting |
Input of X-, Y-, Z-axis / Direct input of FPB (Processing
data) |
| Data record |
Stored in the printer or 3.5" floppy disc. |
| Data automatic compensation |
Comparison between Measuring value and computed value
/ Data compensation |
| Power source |
Single phase AC100V±10%(10A) |
