| CPC Series (Medium
type ~ Large type) |
mm |
|
|
CPC15
|
CPC25
|

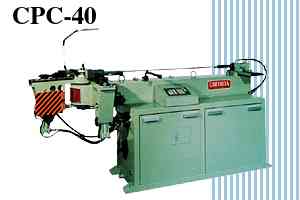

CPC40
|
CPC60
|
CPC80
|
CPC100
|

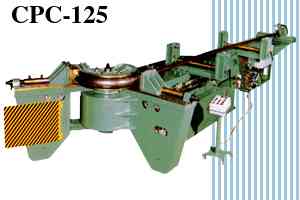

CPC125
|
|
Bend Capacity
|
Steel pipe (thin wall)
|
16×2.0
|
25.4×2.3
|
42.7×3.5
|
60.5×5.5
|
89.1×4.2
|
114.3×4.5
|
165.2×7.1
|
|
Steel pipe (thick wall)
|
13.8×3.0
|
21.7×4.7
|
27.2×5.5
|
42.7×6.4
|
60.5×8.7
|
76.3×9.5
|
101.6×12.7
|
|
Max
|
70
|
200
|
250
|
270
|
500
|
700
|
700
|
|
Effective mandrel length
|
800
|
1,000
|
1,300
|
1,850
|
2,800
|
5,500
|
5,500
|
|
NC Controller
|
|
Number of NC control Axis
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Number of programming process
|
9
|
9
|
9
|
9
|
9
|
9
|
9
|
|
Repeatability
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
Bend-arm speed
(Sec / 180ÅK)
|
High speed
|
2
|
2
|
2.5
|
5
|
7.5
|
15
|
30
|
|
Low speed
|
-
|
3
|
4.5
|
7.5
|
11
|
26
|
50
|
|
Material / shape other than round pipe
|
Round steel, angled steel, square pipe, aluminum sash, U-shaped,
round shaped, coil type, serpentine, spiral type
|
|
Electric motor (HP)
|
2
|
3
|
3
|
10
|
15
|
20
|
30
|
|
Weight
|
550
|
700
|
1,000
|
1,800
|
3,000
|
6,500
|
10,000
|
|
Option (special accessories)
|
operate Control Box/Material stopper/booster Discharge Kicker/Mandrel
oiler,/wiper/Auto charger and discharger/Bending Radius extension/Mandrel
effective Lenght extension/Counterclockwise bender(with counterclock
wise bending arm/Split die exruder)
|
